*Please send message first to check shipping fee.
**If we don't have your size, we can pre-order it for you. Just send message.
Indestructible, can fit proper all road tires, and fit for whole day riding, our type of road bike

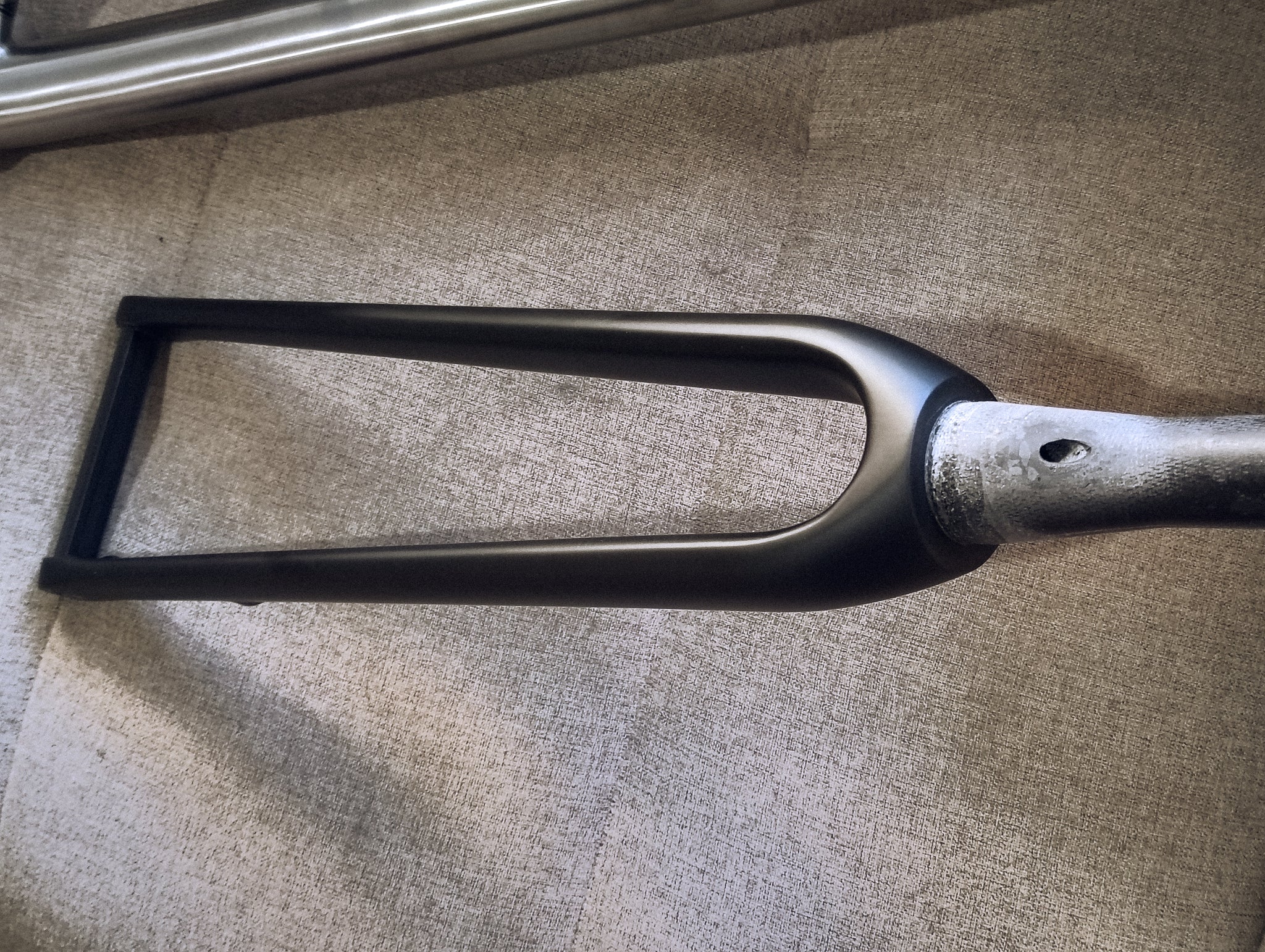

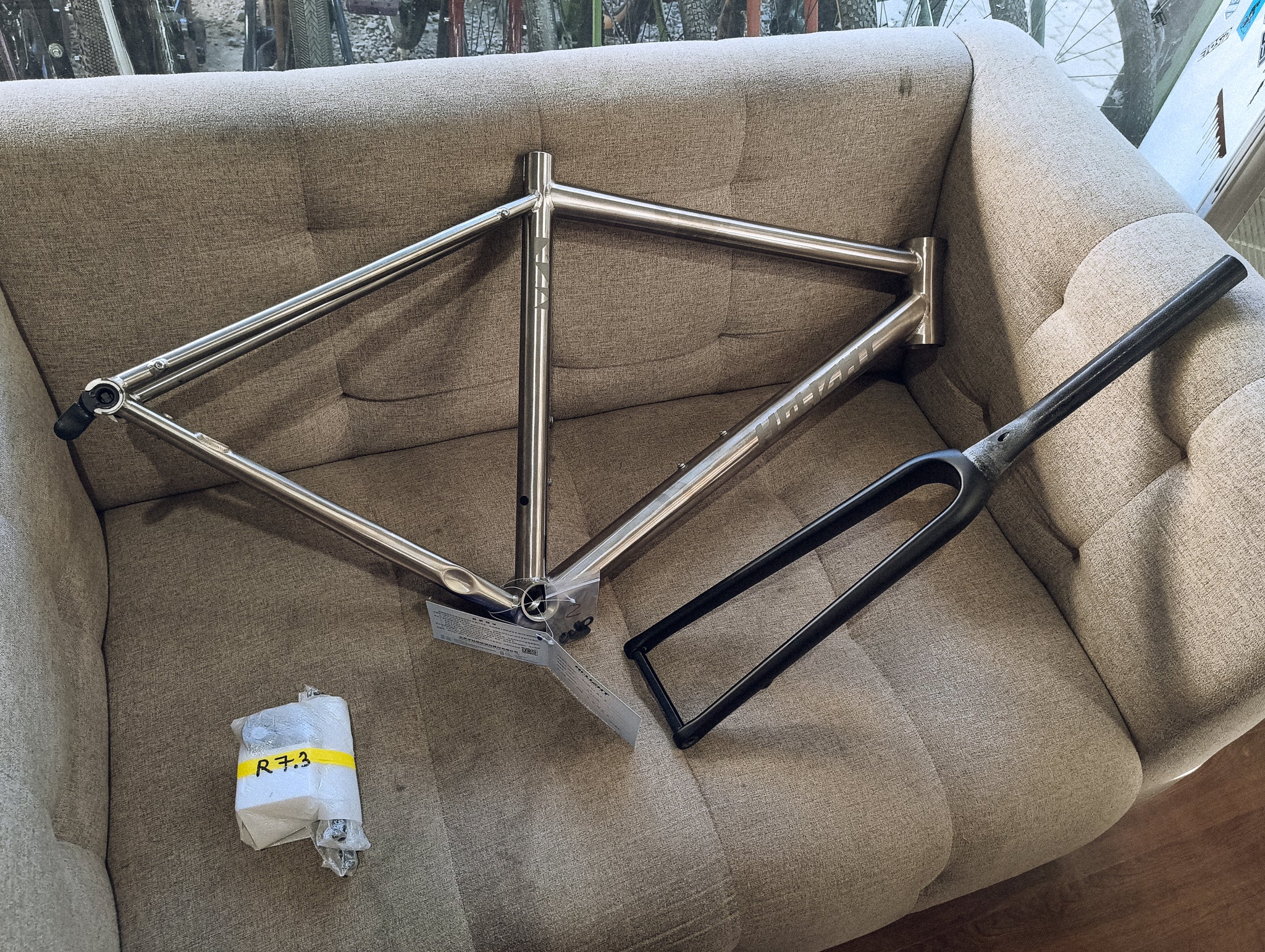

- Titanium frame with carbon fork
- Comfortable geometry
- Fits 700×35c (or a tight 700x40c)
- Full Internal Cable Routing
- Compatible with mechanical and electronic shifting systems

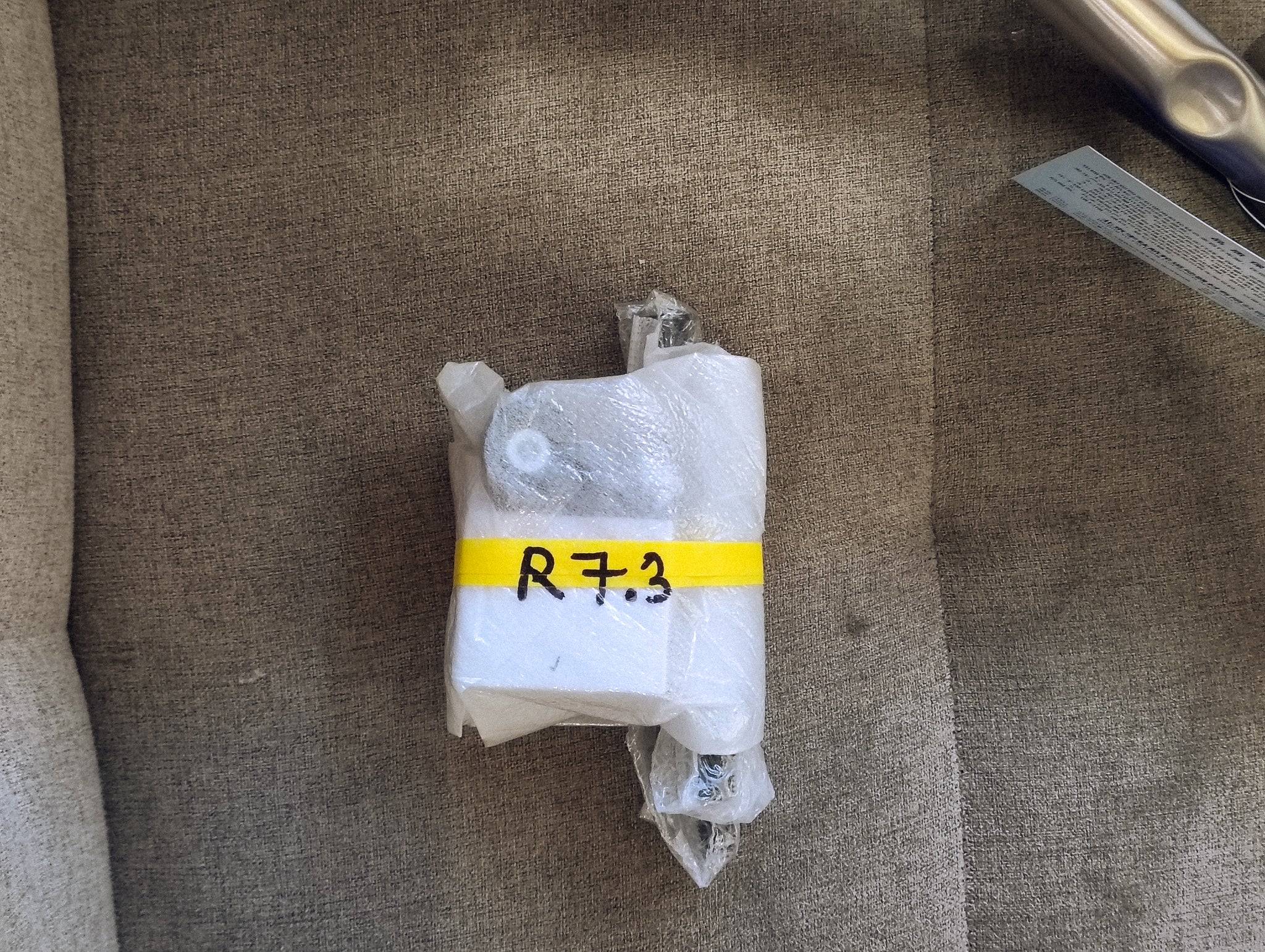

- Includes: Headset, seat clamp and thru axles
- Weight: frame 1.84kg size small with axle and headset, fork is 380g
GEOMETRY
| R7.2 | S | M | L | XL | XXL |
| A Seat Tube Length | 450 | 480 | 510 | 540 | 570 |
| B Top Tube Length | 511 | 525 | 542 | 560 | 580 |
| C Head Tube Angle | 71.5° | 72° | 72° | 72.5° | 73° |
| D Head Tube Length | 115 | 130 | 150 | 170 | 195 |
| E Chain Stay Length | 415 | 415 | 415 | 415 | 415 |
| F Seat Tube Angle | 74.5° | 74° | 73.5° | 73° | 72.5° |
| G Wheel Base | 974 | 979 | 991 | 999 | 1008 |
| H Fork to Center Length | 570 | 575 | 587 | 595 | 603 |
| I BB Drop | 72 | 72 | 72 | 72 | 72 |
| J Fork Rake | 45 | 45 | 45 | 45 | 45 |
| K Stack | 540 | 556 | 575 | 596 | 622 |
| L Reach | 361 | 366 | 372 | 378 | 384 |
TECHNICAL DETAILS
Type: Road

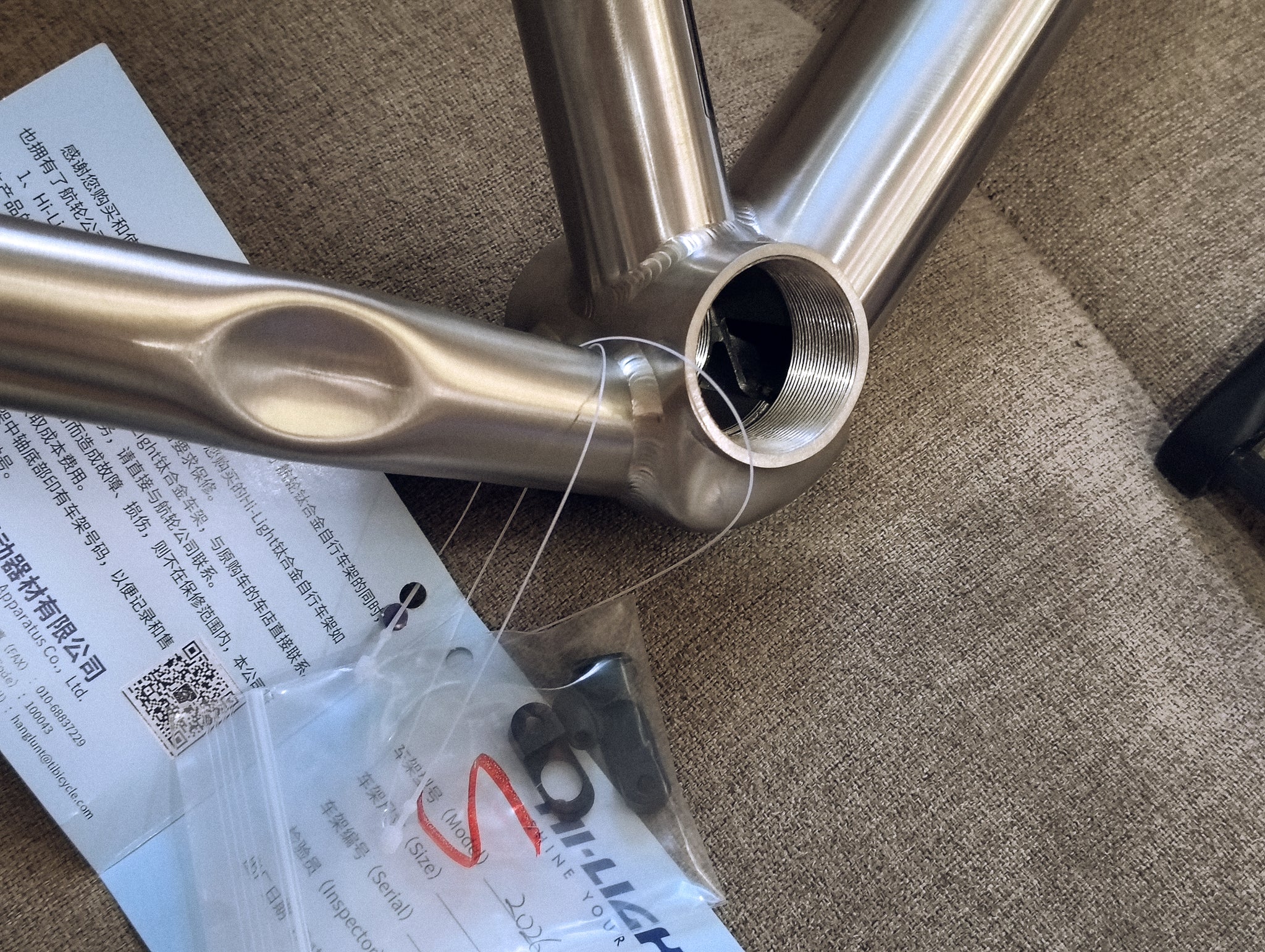

Bottom Bracket: BSA Threaded BB
Cable Routing: Full Internal Cable Routing
Driving System: Compatible in mechanical shift and electronic shift
Brake System: Flat mount Disc Brake
Seat Post Specification: 27.2mm
Seat Clamp Specification: 31.8mm
Front Derailleur: 31.8mm

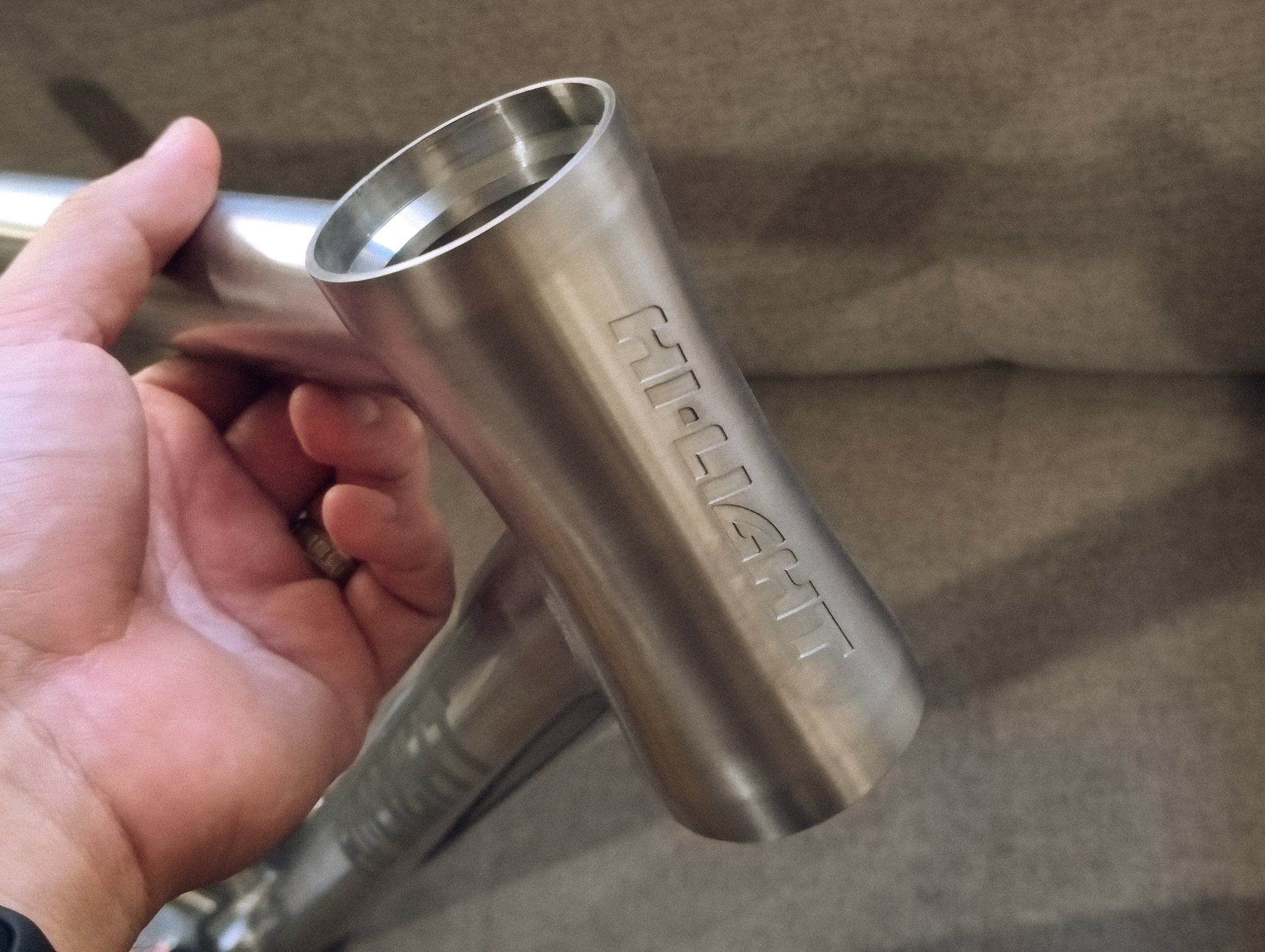

Headset: 1-1/8” - 1.5” IS 44/ EC 44 mm
Hub Central Space: F100 x 12

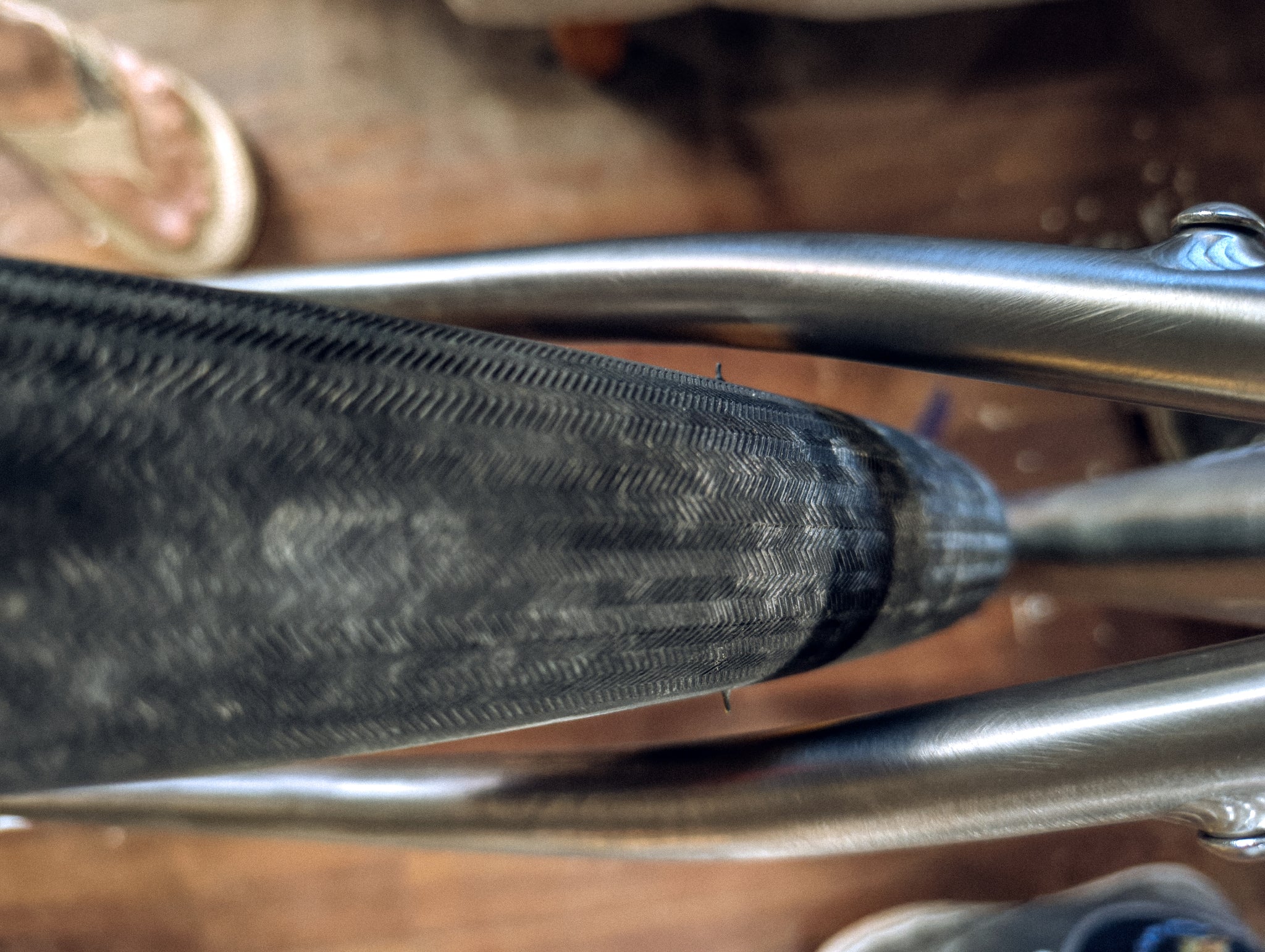

Max Tire: 700×35C (can fit a tight 700x40)
Axle: F12S, R163-M12XP1.5
Features: Brushed and sandblasted surface; hydro-formed tubes; butted tubes; CNC AL-6061-T6 replaceable dropouts
ABOUT THE COMPANY
Hi-Light is manufactured by Hebei Hanglun Technologies Co., Ltd, formerly known as Beijing Hanglun Sports Equipment Co., Ltd. They produce around 18,000 titanium bicycle frames per year. Making them the largest manufacturer of titanium bicycles in the world.
Hanglun was established in March 25, 1992. The company covers an area of 26,000 square meters and has passed the high-tech enterprise certification and ISO quality system certification. They have focused on the design, development and production of high-end titanium alloy sports bicycle frames, parts and related sports equipment.
