*Please send message first to check shipping fee.
Upgraded and slightly used Grrit đź‘€
Â
Green / Yellow decals
Size Small
370mm reach
590mm stack
Frame geometry in mm (xs, s, m, L)
seat tube length: 450, 470, 490, 510
top tube effective: 480, 520, 530, 550
head tube angle: 74, 73, 72.5, 72.5
head tube length: 120, 135, 150, 170
BB height: 269, 269, 269, 269
chainstay: 435, 435, 435, 435
wheelbase: 1048, 1050, 1055, 1065
What's new with Grrit frame:Â
- Slacker front end
- Outer cable routing option
- Internal cable routing for dropper seat post
- 3 mounts on each fork blade and internal dynamo wire routing
- 3 mounts on the downtube
- Added mounts on seat stays
Frame:
Alloy, tapered, thru-axle, flat mount
Fork:
Alloy, with tapered alloy steerer tube, FM brake mounts, 6 mounts, dynamo internal routing
Headset:
Alloy
Handlebar:
Alloy - Hoods Width - 420, Flare Width 510Â
Passe Bartapes
Stem:
Alloy 100mm, +7 degreesÂ
Seatpost:
27.2 - The Project seatpost
Brakes:
Nutt Mechanical Brakes Dual PistonÂ
Crank:
Prowheel RPP 42TÂ
Pedals:
Alloy
Hubs:
Sealed bearing, F:15x100mm, R:12x142mm, 32H, Thru-axle
Spokes:
SteelÂ
Rims:
Alloy Double wall, Tubeless readyÂ
Tire:
Donnelly X'Plor MSO 700x50
RD:
microSHIFT Advent X 10 speed

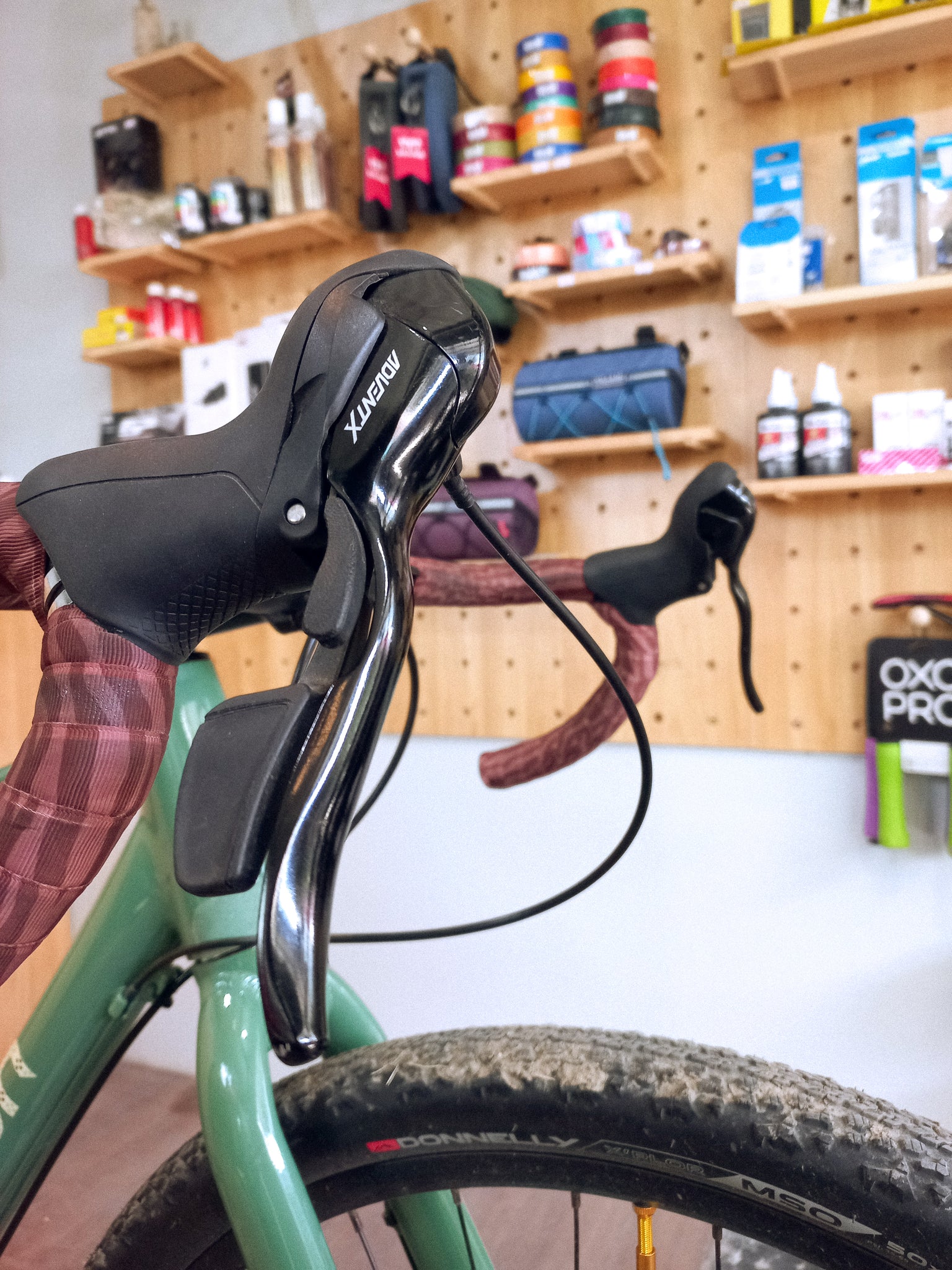

Levers:
microSHIFT Advent X
Cogs:
microSHIFT Advent X 11 - 48t range & 10 - speedÂ
