*Please send message first to check shipping fee.

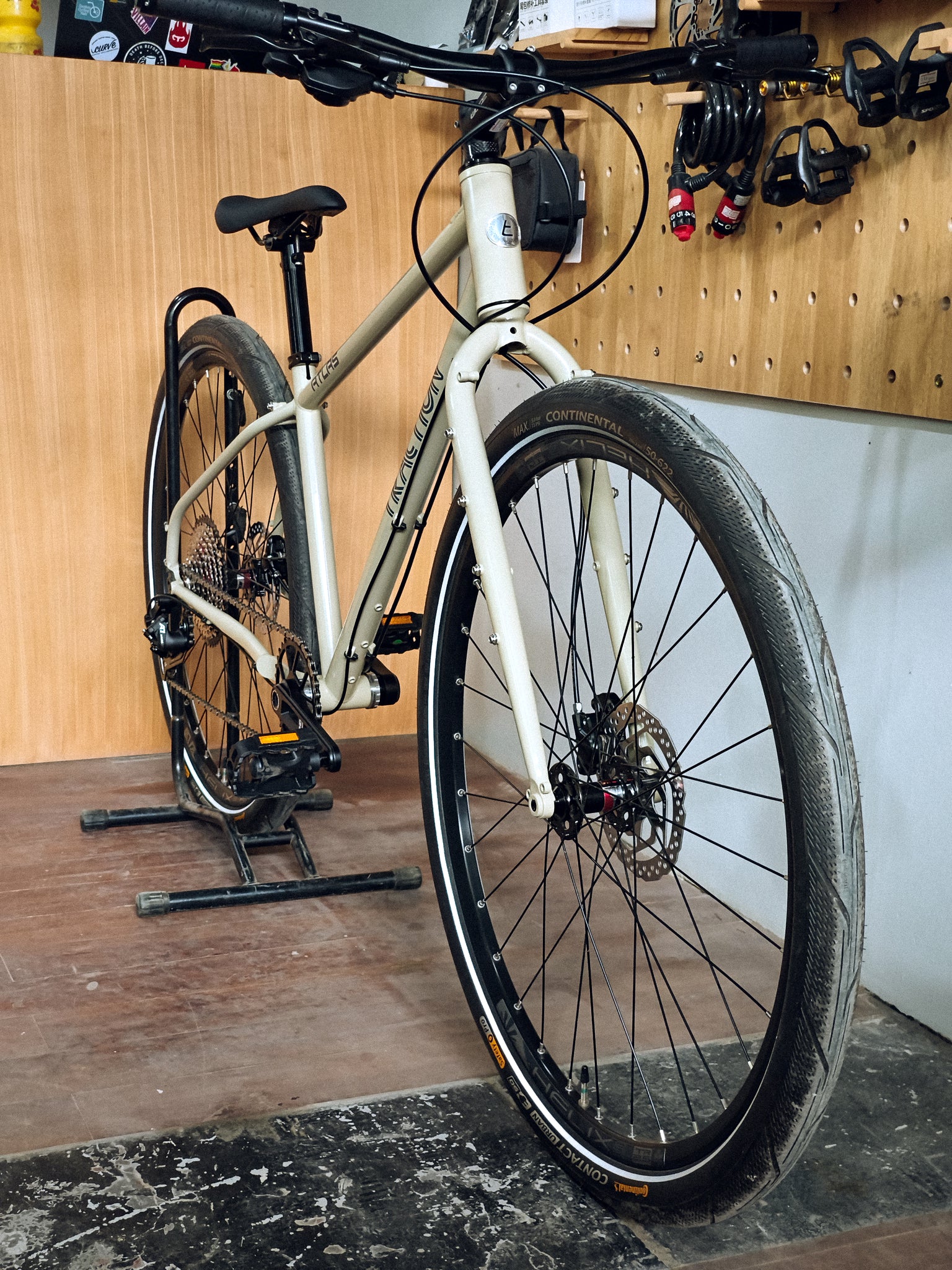

Rigid flat bar steel bikes can go anywhere.
Chromoly steel ✅
Comfortable geo ✅
Huge tire possibilities ✅
Size Small - 5'5" to 5’7”
Seat tube: 41cm
Reach: 43cm approx.
Toptube: 53.5cm
Chain stay: 44cm
Specifications:
- Frame and Fork: Phosphorus coated 4130 Chromoly steel.
- Fits tires up to 29x2.1 / 27.5x2.6, 700x40 / 27.5x2.3 with fenders
- Steerer Tube: 1 1/8in
- The Atlas’ fork is suspension-corrected which allows you to use the Atlas frame with a 100mm travel suspension fork with 650b tires or an 80mm travel suspension fork if you plan to go with 29” tires
- Plenty of mounts for bike packing
- Outer cable routing for easier maintenance
Frame:
Phosphorus coated 4130 Chromoly steel
Fork:
Phosphorus coated 4130 Chromoly steel
Headset:
Alloy

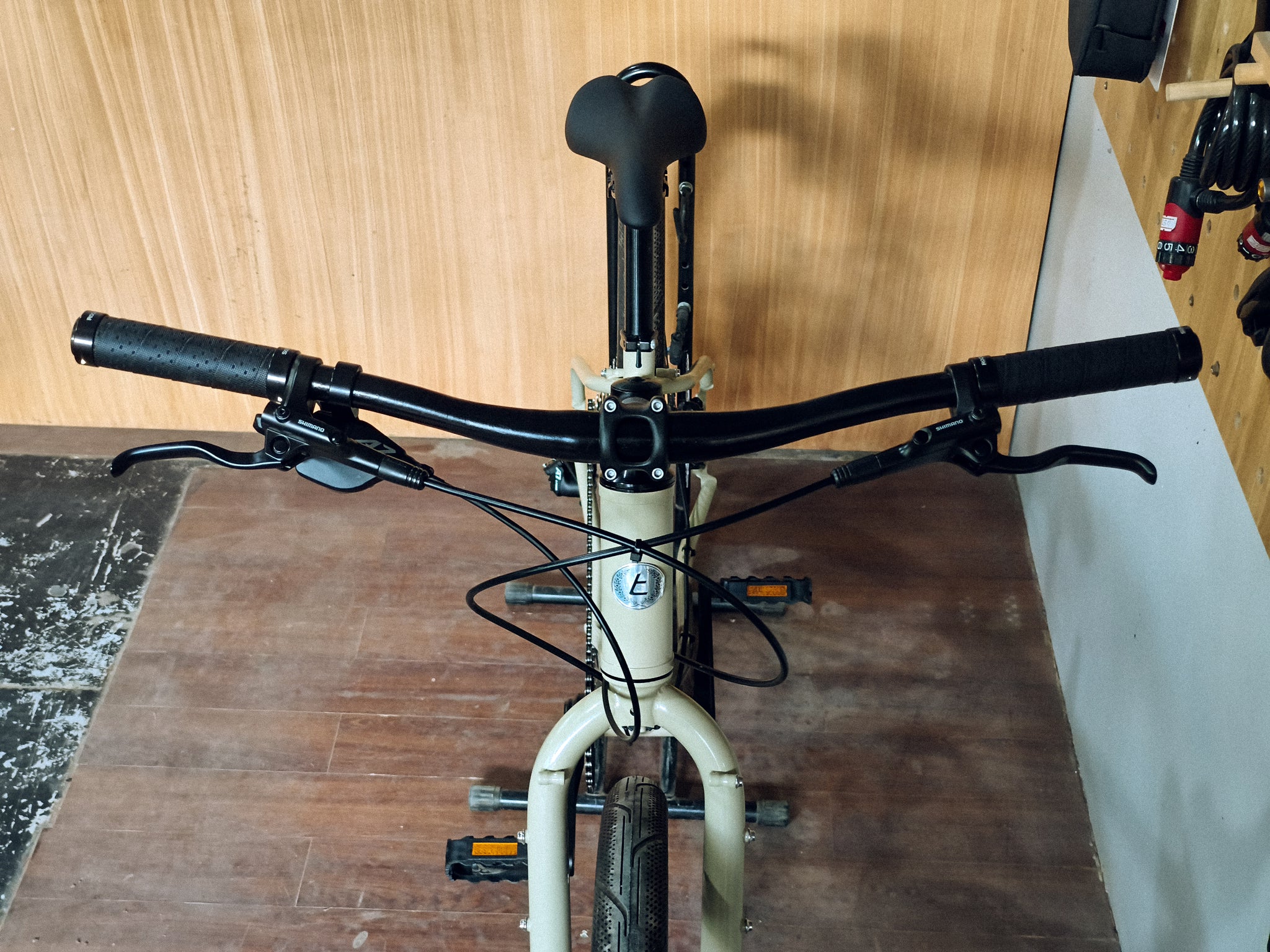

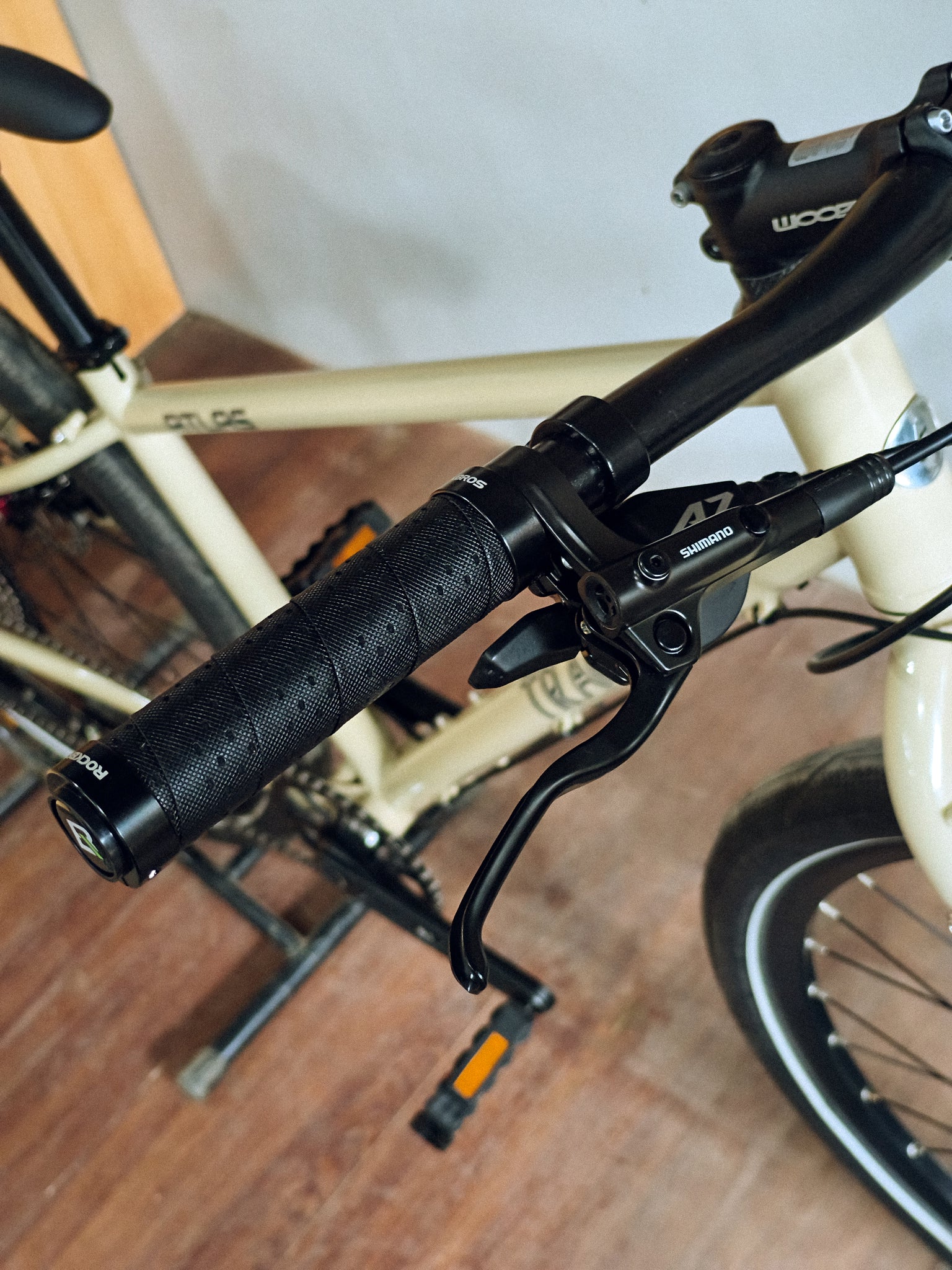

Handlebar:
Low ride back sweep handle bar Alloy
Stem:
Zoom Alloy 90mm, +/- 7 degrees
Seatpost:
Traction Lightweight Seatpost 27.2

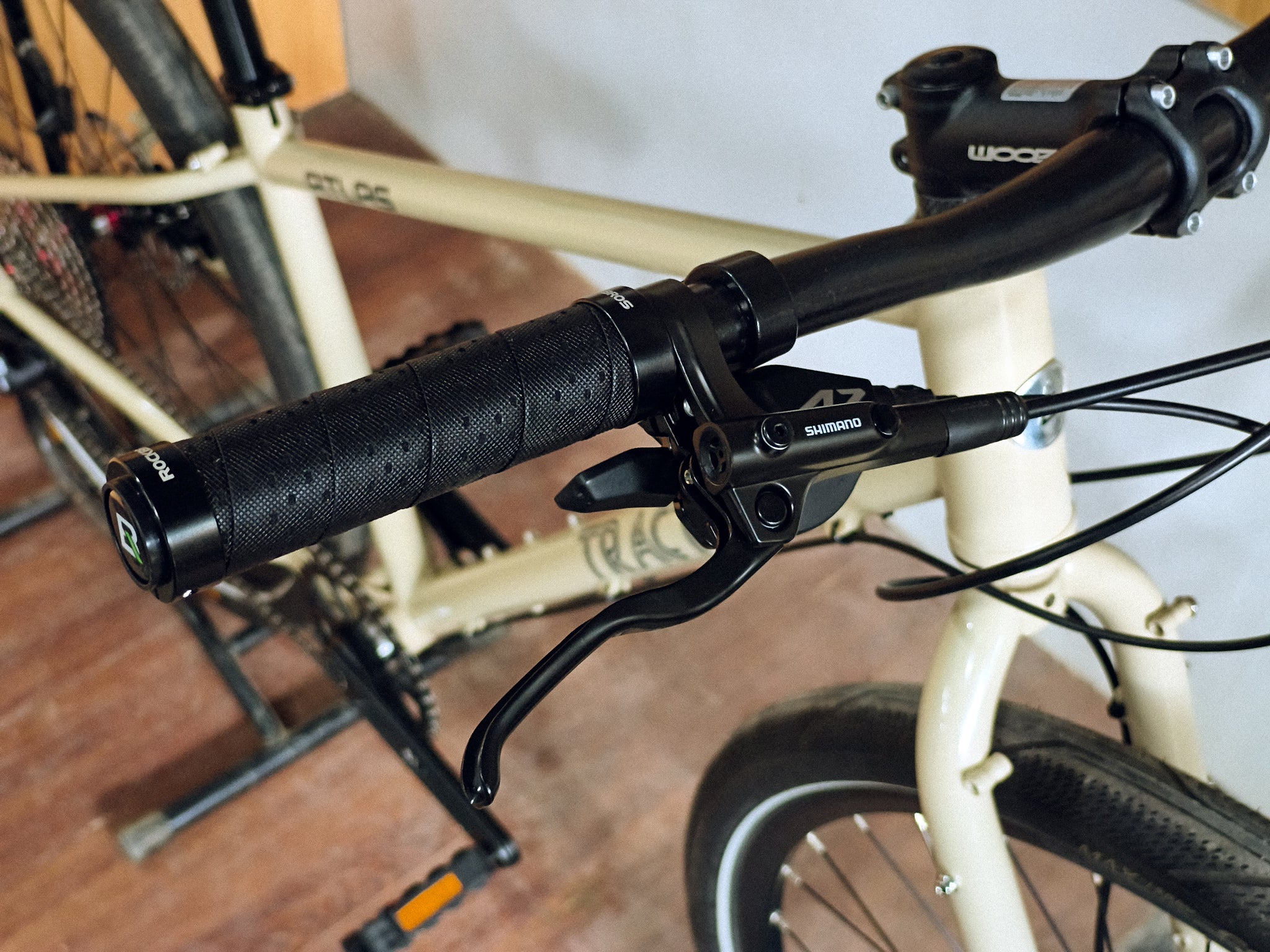

Brakes:
Shimano MT200 hydraulic brakeset

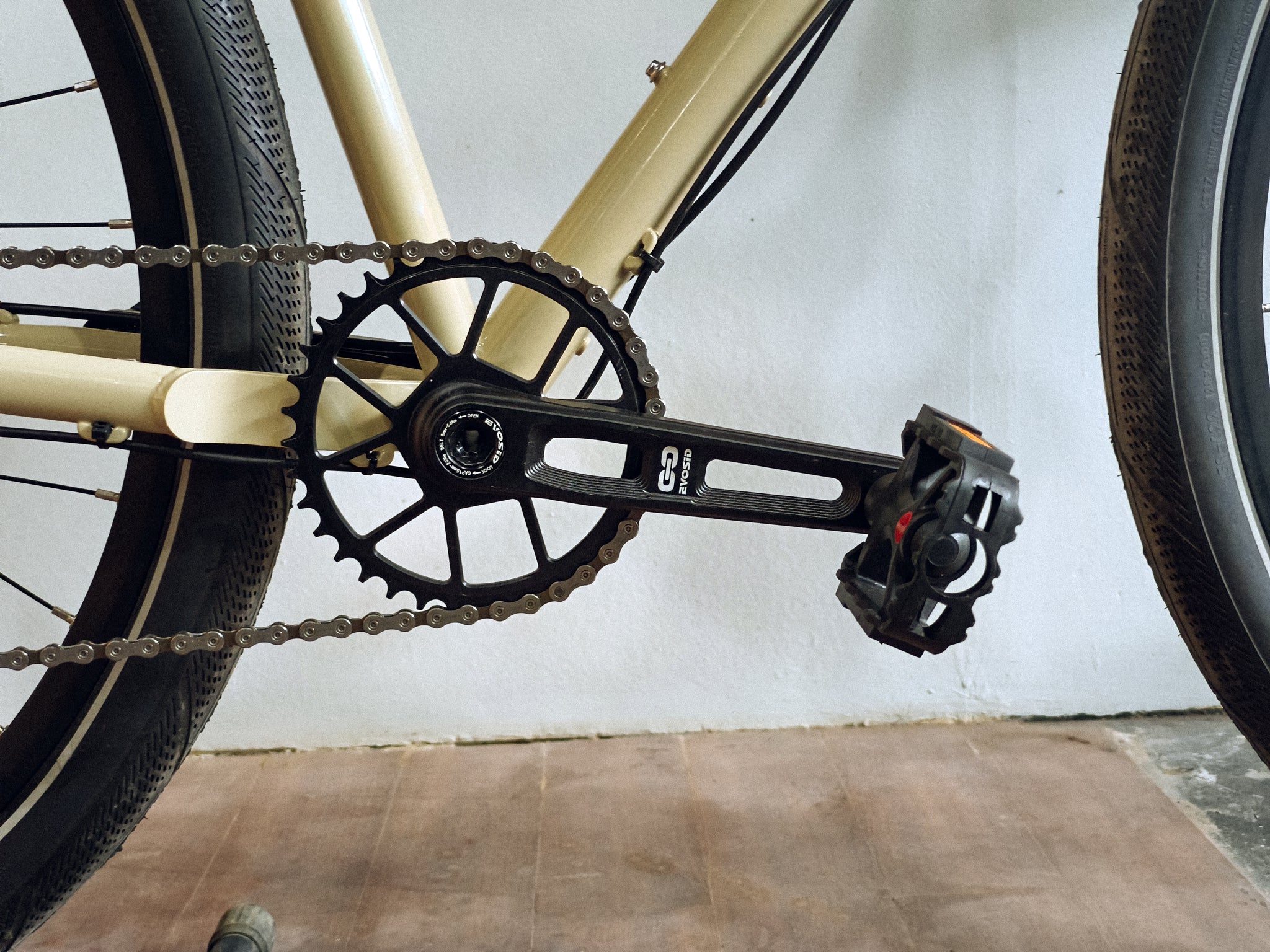

Crank:
Evosid 36t
Hubs:
Gub Hub - GUB-1351- Sealed bearing, F:15x100mm, R:12x142mm, 32H, Thru-axle
Spokes:
Stainless Steel
Rims:
Sunringle Helix 32H w/ eyelet black rims 29", Tubeless ready
Tire:
Continental Contact Urban 700x50c

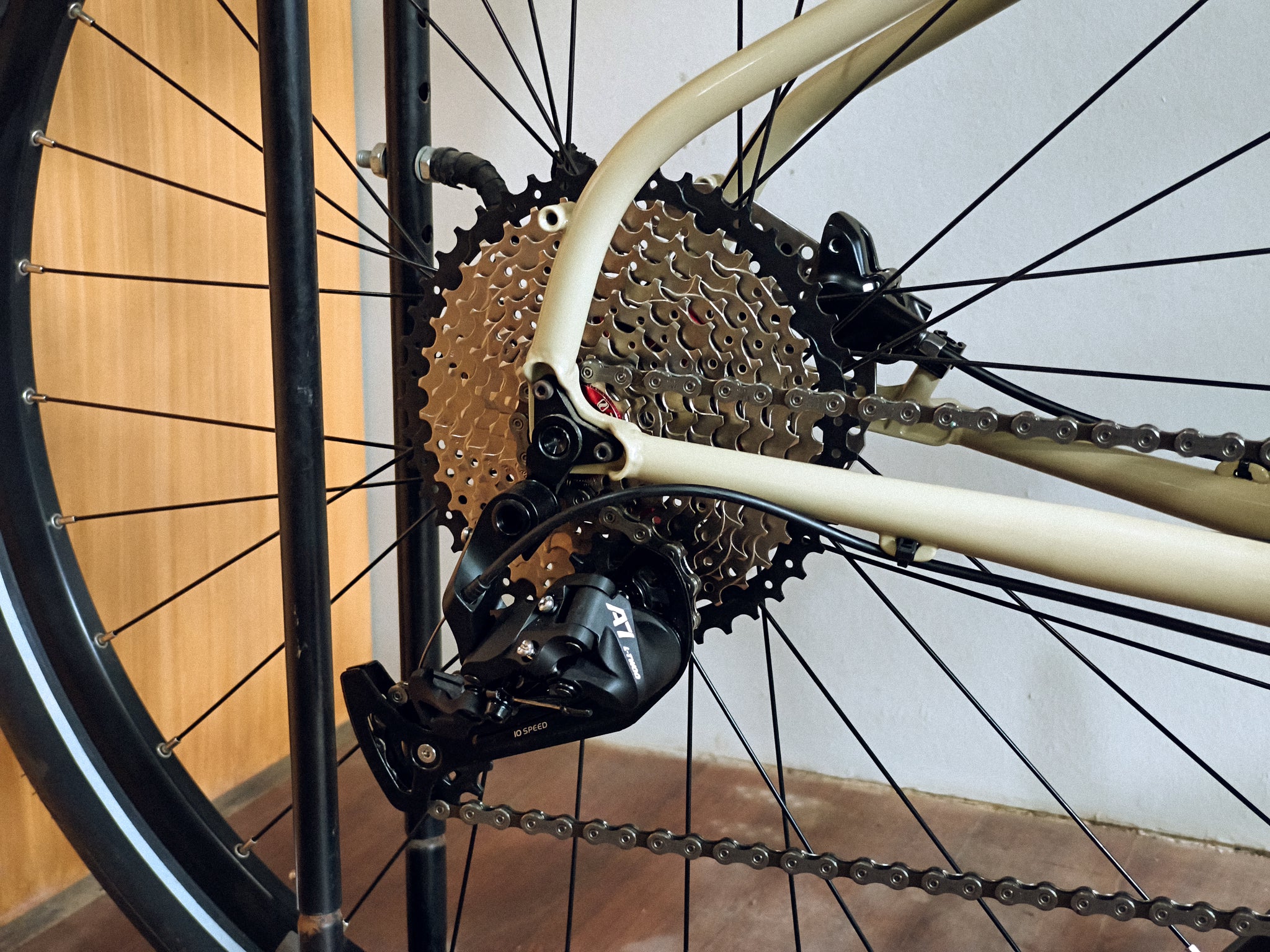

RD:
L-TWOO A7 Elite 10 speed
Levers:
L-TWOO A7 Elite 10 speed
Cogs:
ZTTO 10 speed 11-46
