All day fit for the road and even a little offroad

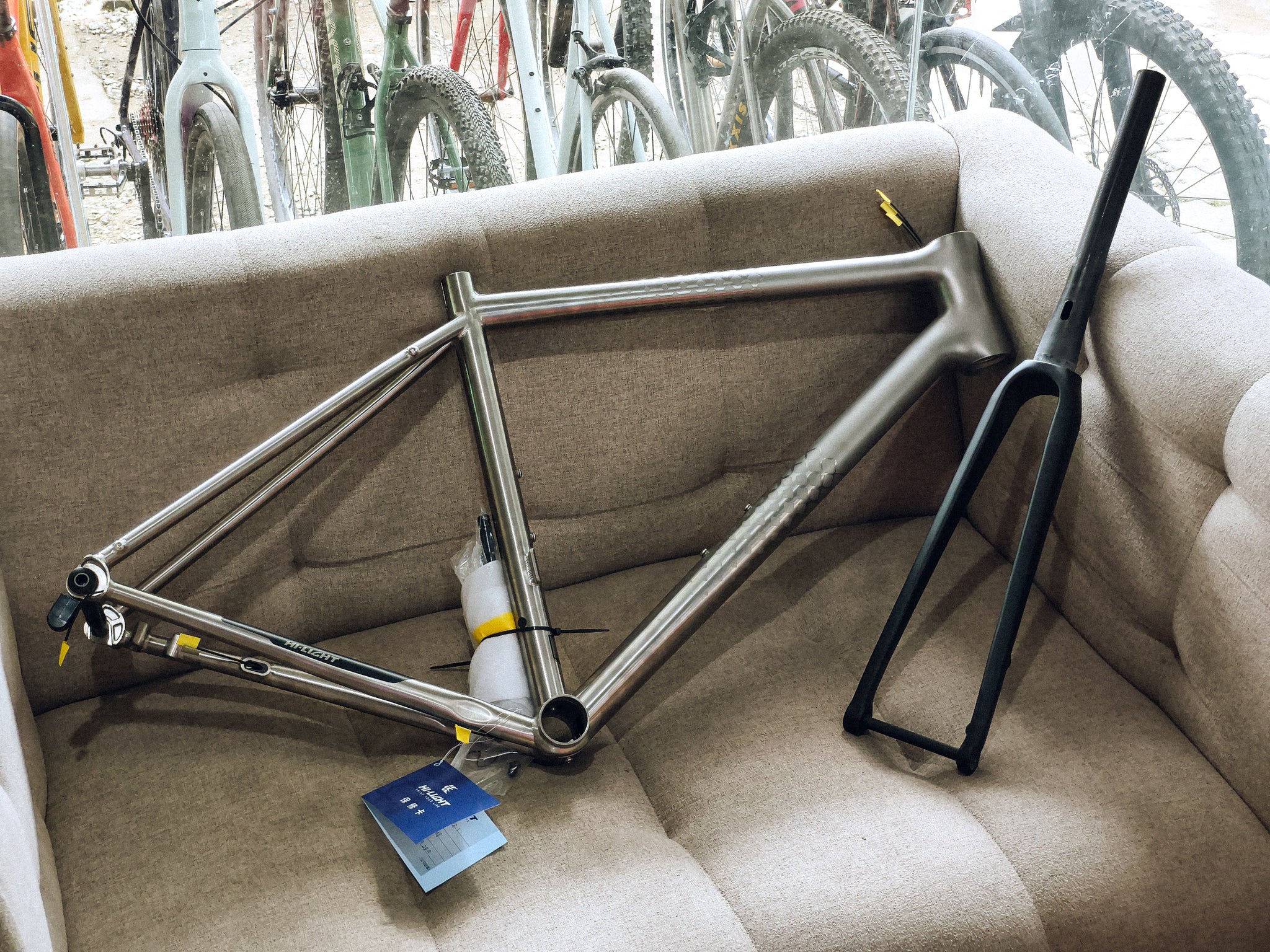

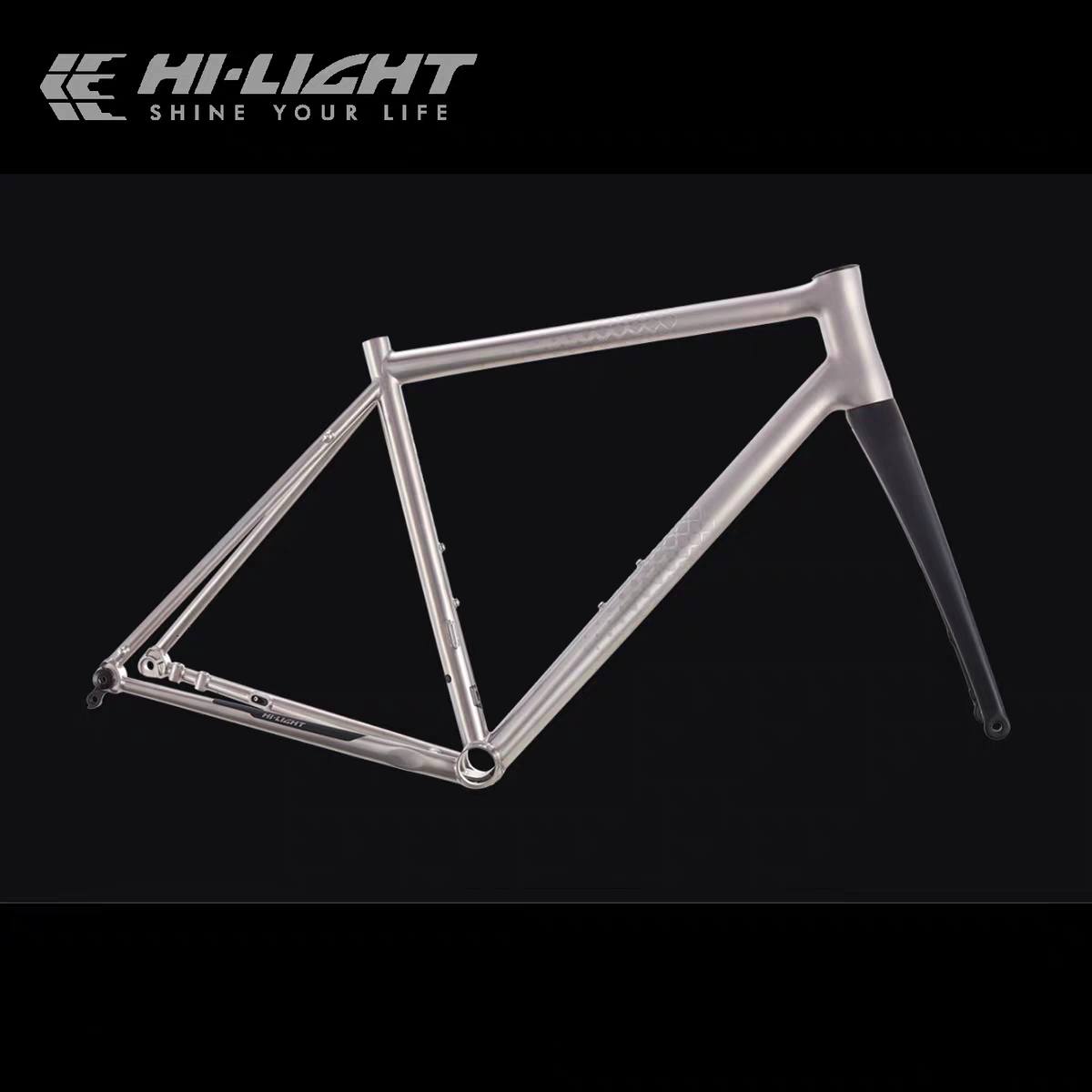

- Titanium frame with carbon fork
- Comfortable geometry
- Fits 700×35C
- Internal cable routing
- Compatible with mechanical and electronic shifting systems
- Includes: Headset, seat clamp and thru axles
- Weight: 1775g (frame size S) & 420g (carbon fork)

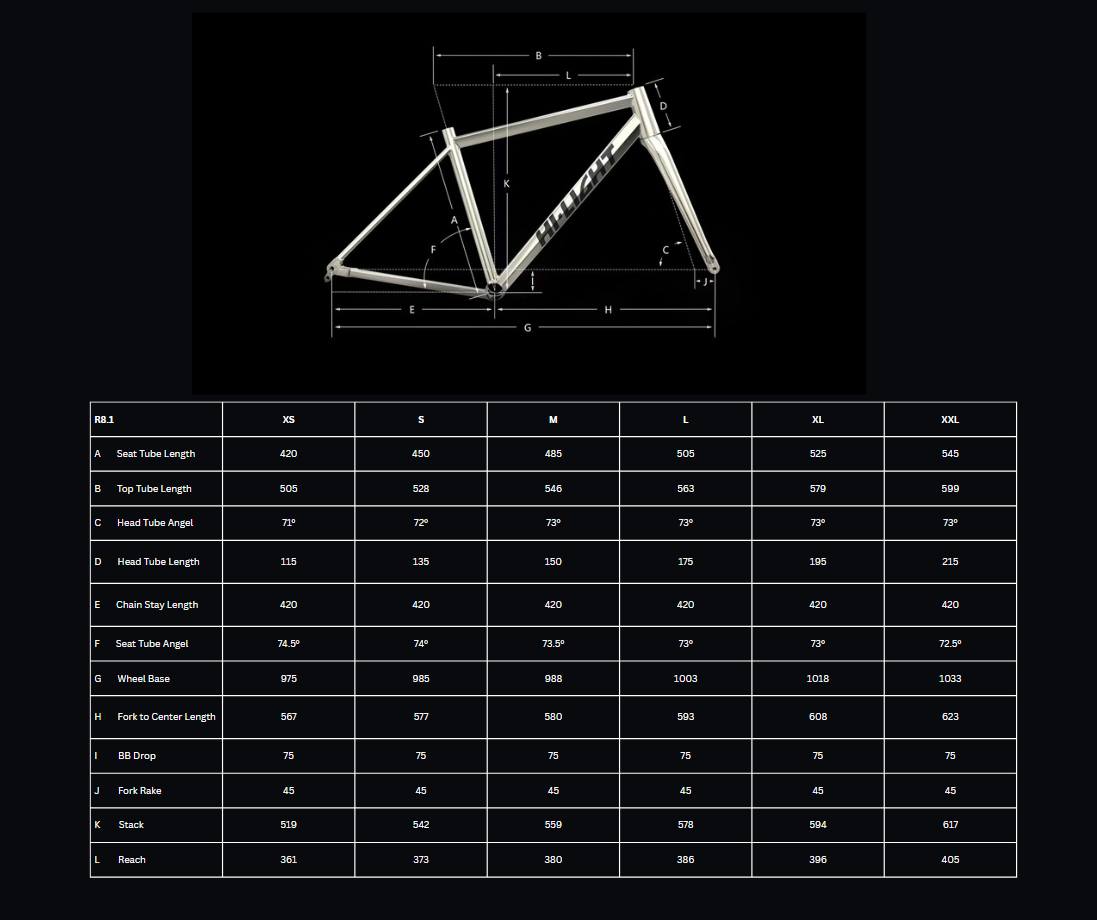

GEOMETRY
| XS | S | M | L | XL | XXL | |
| A Seat Tube Length | 420 | 450 | 485 | 505 | 525 | 545 |
| B Top Tube Length | 505 | 528 | 546 | 563 | 579 | 599 |
| C Head Tube Angle | 71∘ | 72∘ | 73∘ | 73∘ | 73∘ | 73∘ |
| D Head Tube Length | 115 | 135 | 150 | 175 | 195 | 215 |
| E Chain Stay Length | 420 | 420 | 420 | 420 | 420 | 420 |
| F Seat Tube Angle | 74.5∘ | 74∘ | 73.5∘ | 73∘ | 73∘ | 72.5∘ |
| G Wheel Base | 975 | 985 | 988 | 1003 | 1018 | 1033 |
| H Fork to Center Length | 567 | 577 | 580 | 593 | 608 | 623 |
| I BB Drop | 75 | 75 | 75 | 75 | 75 | 75 |
| J Fork Rake | 45 | 45 | 45 | 45 | 45 | 45 |
| K Stack | 519 | 542 | 559 | 578 | 594 | 617 |
| L Reach | 361 | 373 | 380 | 386 | 396 | 405 |
TECHNICAL DETAILS
Model Name: Hi-Light R8.1 Titanium Frameset
- Type: Road

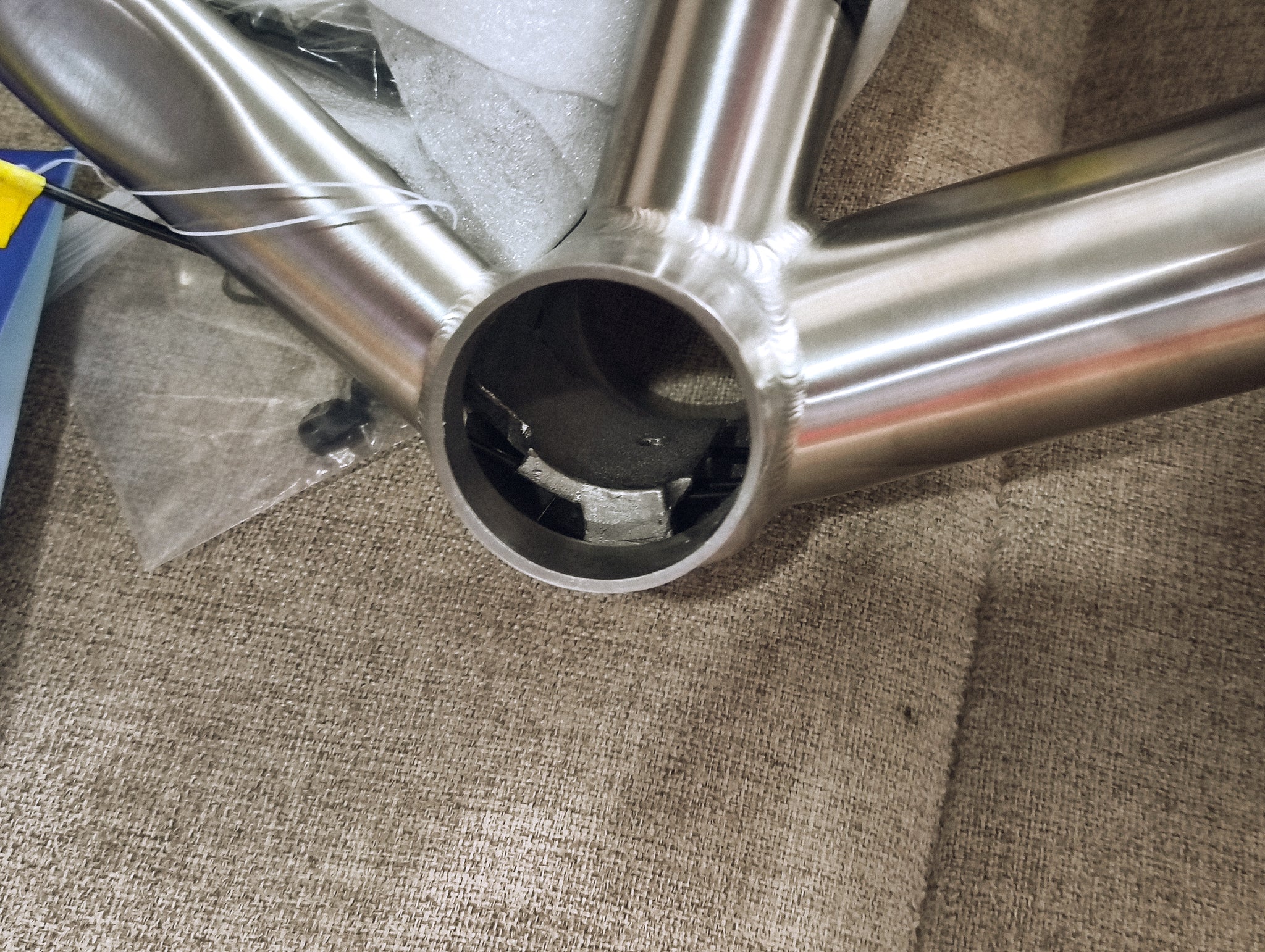

- Bottom Bracket: Press-Fit BB 86.5 mm

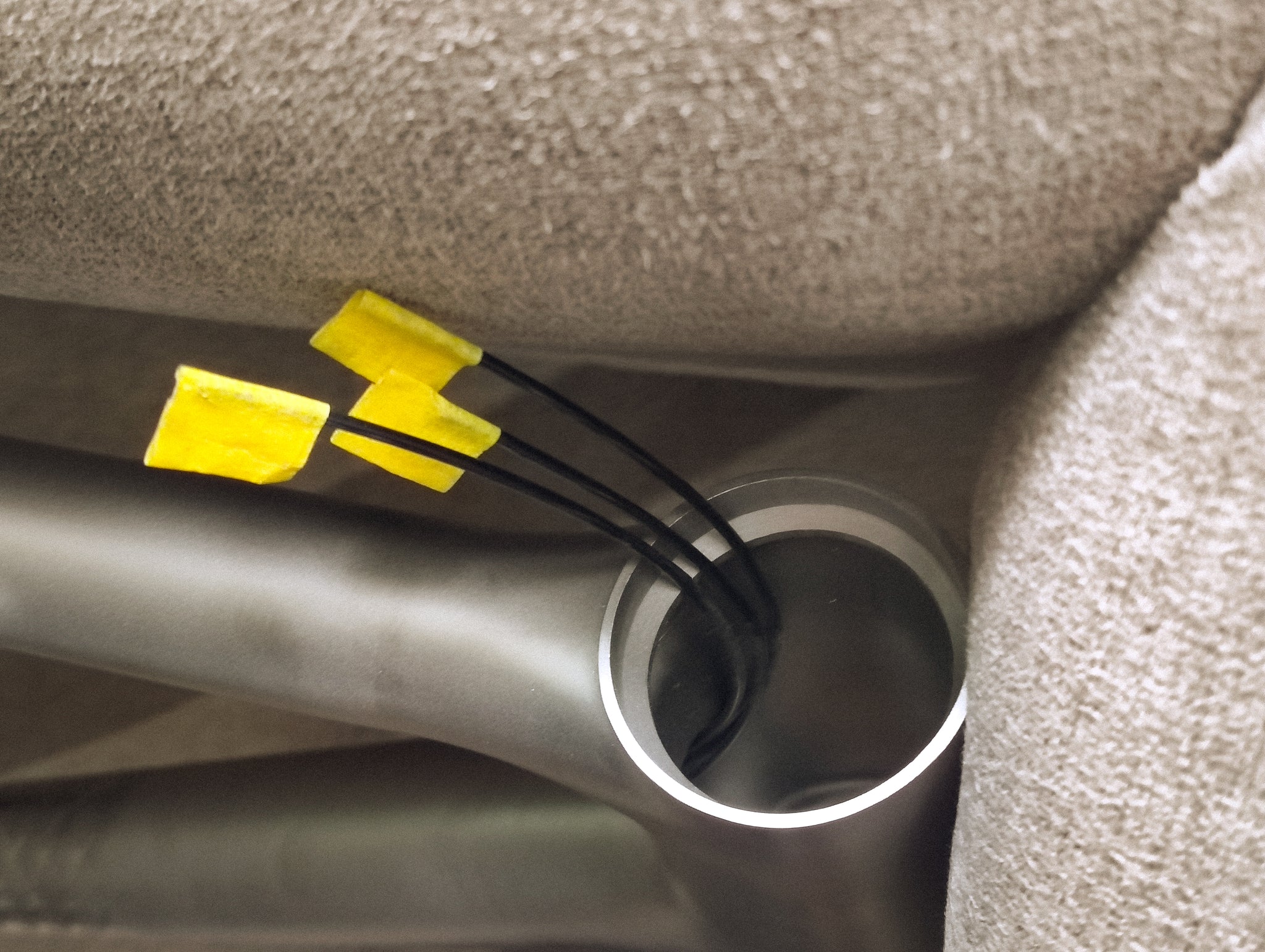

- Cable Routing: Full Internal Cable Routing
- Driving System: Compatible in mechanical shift and electronic shift
- Brake System: Flat mount Disc Brake
- Seat Post Specification: 27.2mm
- Seat Clamp Specification: 31.8mm
- Front Derailleur: Direct Mount BRAZED-ON
- Headset: 1-1/8” - 1.5” IS 52/ IS 52mm
- Hub Central Space: F100 x 12mm, R142 x 12 mm
- Max Tire: ETRTO 28-622 inch: 28 x 1.10 - 700×35C
- Axle: F12S, R163-M12XP1.0

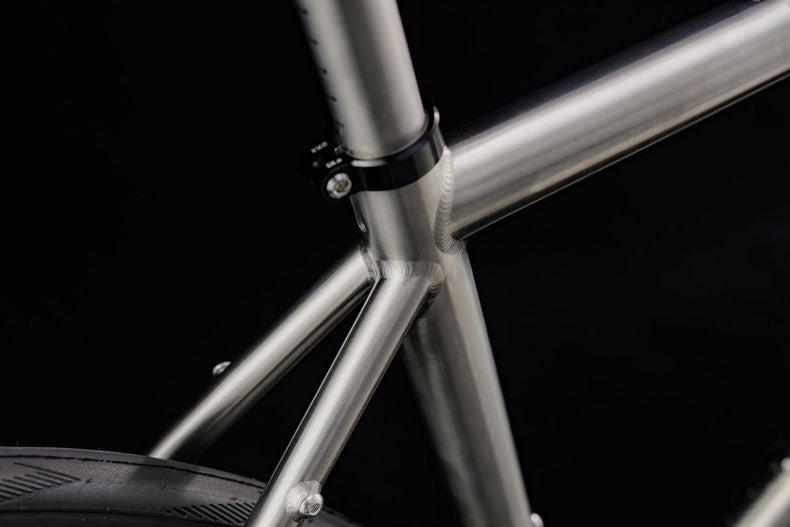

- Features: Brushed and sandblasted surface; hydro-formed tubes; butted tubes; 3D integrated head tube; CNC machined dropouts
ABOUT THE COMPANY
Hi-Light is manufactured by Hebei Hanglun Technologies Co., Ltd, formerly known as Beijing Hanglun Sports Equipment Co., Ltd. They produce around 18,000 titanium bicycle frames per year. Making them the largest manufacturer of titanium bicycles in the world.
Hanglun was established in March 25, 1992. The company covers an area of 26,000 square meters and has passed the high-tech enterprise certification and ISO quality system certification. They have focused on the design, development and production of high-end titanium alloy sports bicycle frames, parts and related sports equipment.
