Hi-Light G0 Titanium Gravel Frameset

Regular price
₱130,000.00
Sale price
₱130,000.00
Regular price
₱15,600.00
Sold out
Unit price
per

*Please send message first to check shipping fee.

**If we don't have your size, we can pre-order it for you. Just send message.

3D Printed titanium means it looks like a fast carbon bike, but with the strength of steel

  • Titanium frame with carbon fork
  • Comfortable geometry
  • Fits 700×45C
  • Full Internal Cable Routing
  • Compatible with mechanical and electronic shifting systems
  • Includes: Headset, seat clamp and thru axles

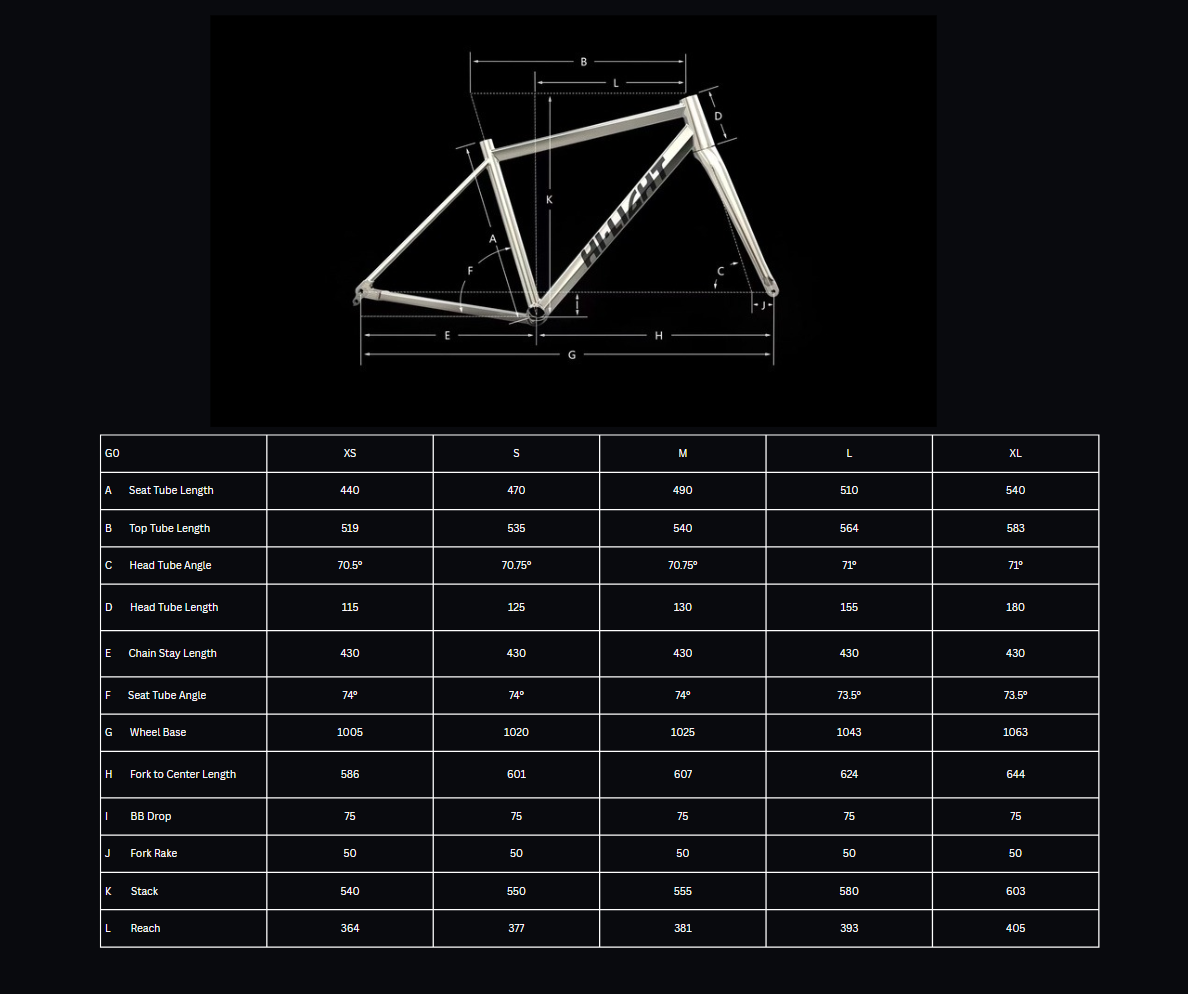

GEOMETRY

GO XS S M L XL
A Seat Tube Length 440 470 490 510 540
B Top Tube Length 519 535 540 564 583
C Head Tube Angle 70.5° 70.75° 70.75° 71° 71°
D Head Tube Length 115 125 130 155 180
E Chain Stay Length 430 430 430 430 430
F Seat Tube Angle 74° 74° 74° 73.5° 73.5°
G Wheel Base 1005 1020 1025 1043 1063
H Fork to Center Length 586 601 607 624 644
I BB Drop 75 75 75 75 75
J Fork Rake 50 50 50 50 50
K Stack 540 550 555 580 60





TECHNICAL DETAILS

Model Name: Hi-Light G0 Titanium Frameset
Type: Gravel
Bottom Bracket: T47 85.5mm
Cable Routing: Full Internal Cable Routing
Driving System: Compatible in mechanical shift and electronic shift
Brake System: Flat mount Disc Brake
Seat Post Specification: 30.9mm
Seat Clamp Specification: 34.9mm
Front Derailleur: 34.9mm
Headset: 1-1/8” - 1.5” IS 52/ IS 52mm
Hub Central Space: F100 x 12mm, R142 x 12 mm
Max Tire: ETRTO 47-622 inch, 27.5 x 2.0, 700×45C
Axle: F12S-M12XP1.5, R169-M12XP1.0
Features: Brushed, mirror and sandblasted surface; hydro-formed tubes; 3D printed dropouts, yoke, and head tube; integrated high-rigid body



ABOUT THE COMPANY

Hi-Light is manufactured by Hebei Hanglun Technologies Co., Ltd, formerly known as Beijing Hanglun Sports Equipment Co., Ltd. They produce around 18,000 titanium bicycle frames per year. Making them the largest manufacturer of titanium bicycles in the world.

Hanglun was established in March 25, 1992. The company covers an area of 26,000 square meters and has passed the high-tech enterprise certification and ISO quality system certification. They have focused on the design, development and production of high-end titanium alloy sports bicycle frames, parts and related sports equipment.
